Kingbright
KP-2012SYC
Single Color LED, Super Bright Yellow, Water Clear, 1.3mm, 2 X 1.25 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Package2012
MountingSurface Mount
Power125mW
Quick Jump:
Technical Specifications
Kingbright KP-2012SYC technical specifications.
General
| Package/Case | 2012 |
| Color | Yellow |
| Forward Current | 20mA |
| Lead Free | Lead Free |
| Lens Style | Rectangular, Clear |
| Luminous Intensity | 60mcd |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 125mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 120° |
| Wavelength | 590nm |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kingbright KP-2012SYC Datasheet
Download the complete datasheet for Kingbright KP-2012SYC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

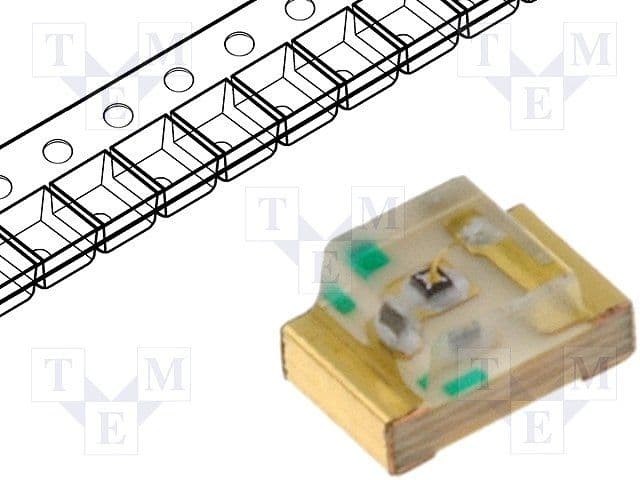

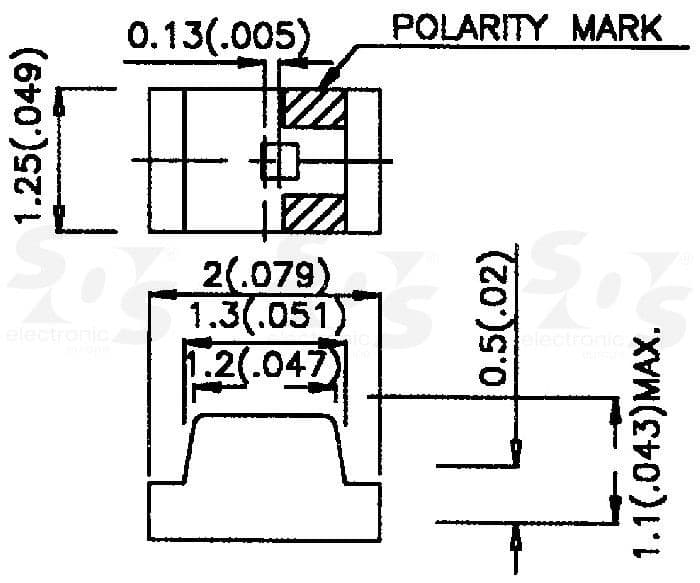

Product Images
