Kingbright
SC03-12EWA
KINGBRIGHT SC03-12EWA 7-Segment LED Display, Mechanically Rugged, 1, 7.62 mm, Red, Common Cathode, 8.5 mcd, 20 mA
PackageDIP
Quick Jump:
Technical Specifications
Kingbright SC03-12EWA technical specifications.
General
Package/Case
DIP
Color
Red
Display Type
Segment
Forward Current
30mA
Height
19mm
Illumination Color
Red
Luminous Intensity
8.1mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
75mW
Number of Characters
1
Operating Supply Voltage
2V
Package Quantity
26
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Wavelength
625nm
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Kingbright SC03-12EWA Datasheet
Download the complete datasheet for Kingbright SC03-12EWA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

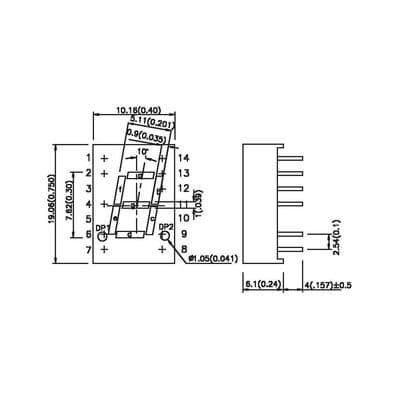

Product Images
