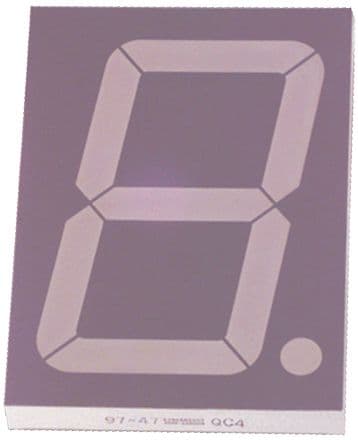

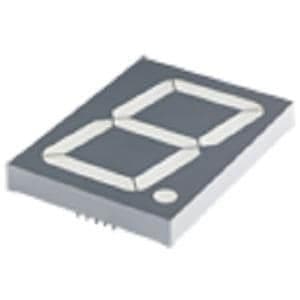

The SC40-19SRWA is a 7-segment LED display from Kingbright with a red illumination color and a luminous intensity of 105mcd. It operates within a temperature range of -40°C to 85°C and has a maximum power dissipation of 600mW. This display is available in a DIP package and is mounted through a hole. It is RoHS compliant and has a forward current of 20mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright SC40-19SRWA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Character Width | 59.5mm |
| Color | Red |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 4.803inch |
| Illumination Color | Red |
| Luminous Intensity | 105mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Positions | 1 |
| Number of Segments | 7 |
| Package Quantity | 6 |
| Packaging | Bulk |
| Power Consumption | 600mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Wavelength | 640nm |
| Width | 3.543inch |
| RoHS | Compliant |
