Kingbright
TA20-11SRWA
NumericDisplay Matrix Module 35LED SB. Red Anode Column Cathode Row 14-Pin DIP Tube
Quick Jump:
Technical Specifications
Kingbright TA20-11SRWA technical specifications.
General
Color
Red
Display Type
Dot Matrix
Forward Current
30mA
Height
0.33inch
Illumination Color
Red
Lead Free
Lead Free
Length
2.09inch
Luminous Intensity
48mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Operating Supply Voltage
1.85V
Package Quantity
13
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
1.85V
Wavelength
640nm
Width
1.48inch
Compliance
RoHS
Compliant
Datasheet
Kingbright TA20-11SRWA Datasheet
Download the complete datasheet for Kingbright TA20-11SRWA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

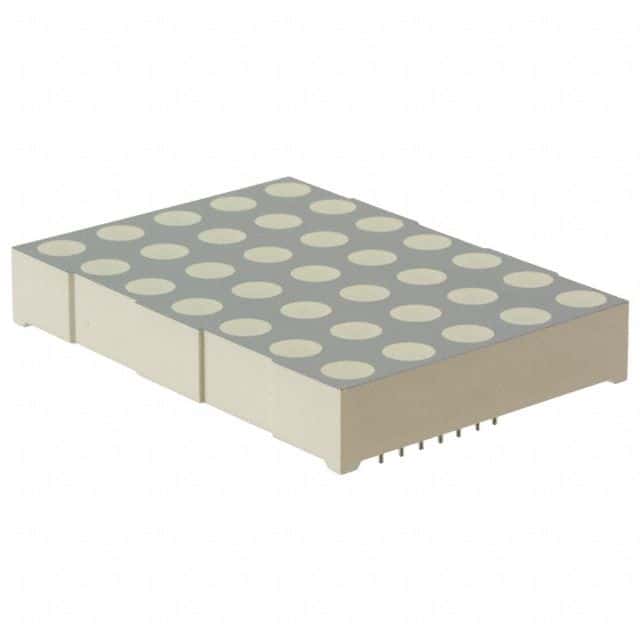

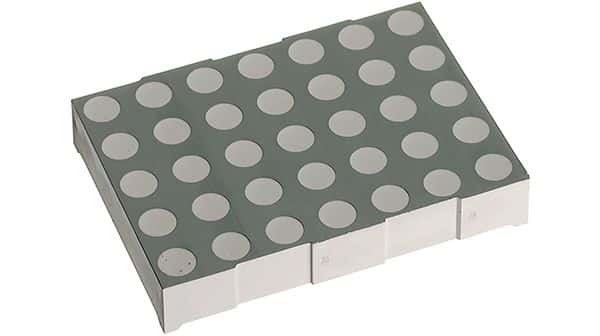

Product Images
