Technical Specifications
Kycon KUSBVX-AS1N-W technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | White |
| Mating Cycles | 1500 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Vertical |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 120 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | KUSBVX |
| Shielding | Shielded |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Kycon KUSBVX-AS1N-W Datasheet
Download the complete datasheet for Kycon KUSBVX-AS1N-W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

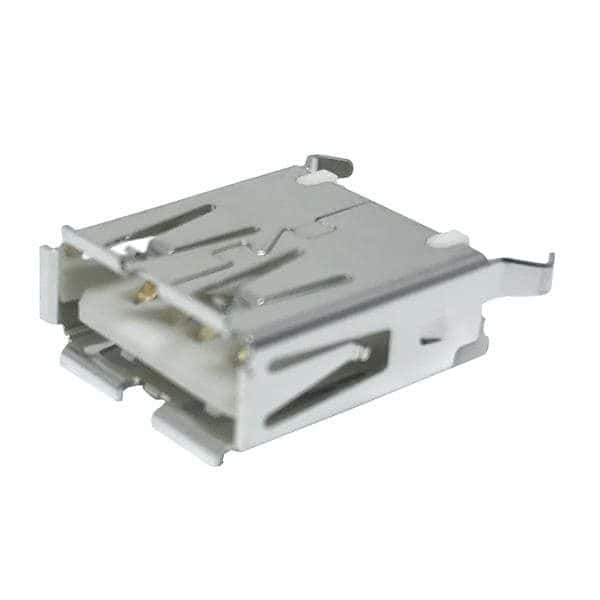

Product Images
