Solid Tantalum Capacitor, 2.2µF capacitance, 25V DC rated voltage, and 20% tolerance. Features a 1206 (3216 metric) surface mount case code with a flat construction, measuring 3.2mm length, 1.6mm width, and 1.8mm height. Offers a low leakage current of 600nA, 6% dissipation factor, and 7Ω ESR. Operates across a wide temperature range from -55°C to 125°C, with a ripple current rating of 104mA.
Package1206
Capacitance2.2uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TAJA225M025RNJ technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
7R
Features
General Purpose
Height
1.8mm
Lead Free
Lead Free
Lead Pitch
1.1mm
Leakage Current
600nA
Length
3.2mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
104mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJA225M025RNJ Datasheet
Download the complete datasheet for Kyocera TAJA225M025RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

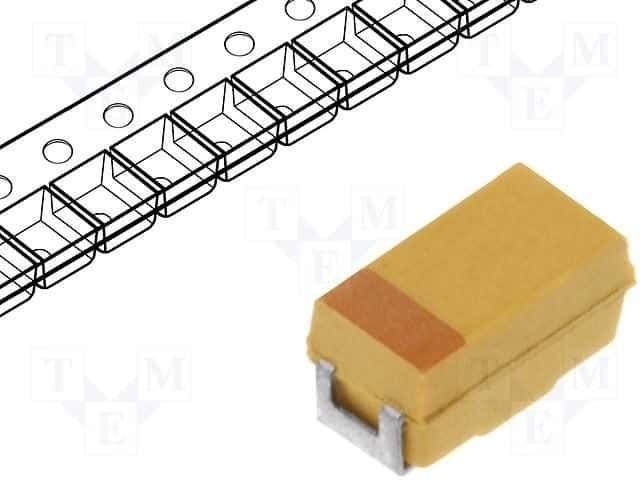

Product Images
