Lapp
0015804

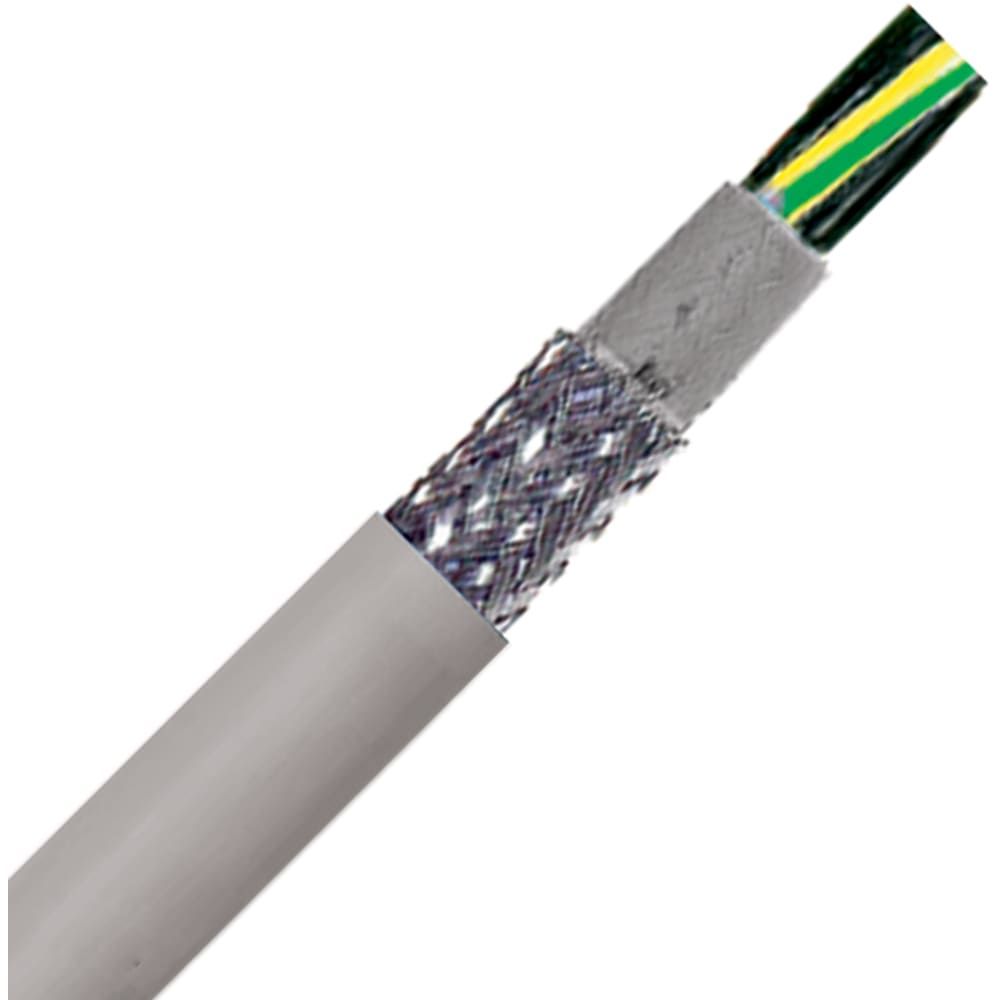

Multiconductor Shielded Cable, Lflexr Cy, Per M, 4, 16 Awg, 1.5 Mm , 4 X 1.5Mm Rohs Compliant: Yes
Voltage Rating600V
MountingCable
Quick Jump:
Technical Specifications
Lapp 0015804 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 50m |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Conductors | 4 |
| Number of Cores | 4 |
| Number of Strands | 30 |
| Outside Diameter | 11.3mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Test Voltage | 3kV |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Wire/Cable Gauge | 15AWG |
Compliance
| RoHS | Compliant |
Datasheet
Lapp 0015804 Datasheet
Download the complete datasheet for Lapp 0015804 to view detailed technical specifications.
No datasheet is available for this part.
