Frequency167MHz
PackageTQFP
Current40mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor ISPLSI2032A-135LTN44 technical specifications.
General
Package/Case
TQFP
Max Frequency
167MHz
Max Operating Temperature
70°C
Memory Type
EEPROM,
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Gates
1000
Number of I/Os
32
Number of Logic Blocks (LABs)
8
Number of Logic Elements/Cells
8
Number of Macrocells
32
Number of Programmable I/O
32
Operating Supply Current
40mA
Operating Supply Voltage
5V
Package Quantity
160
Packaging
Tray
RoHS Compliant
Yes
Series
ispLSI® 2000A
Supply Current
40mA
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor ISPLSI2032A-135LTN44 Datasheet
Download the complete datasheet for Lattice Semiconductor ISPLSI2032A-135LTN44 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

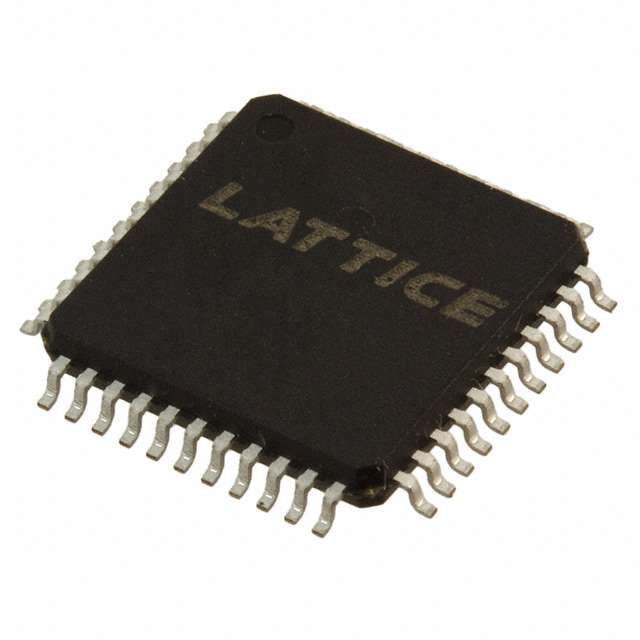

Product Images
