Technical Specifications
LEM CTSR0.6-P technical specifications.
General
Accuracy
1.5%
Package/Case
Module
Current Sensing
600mA
Frequency
9.5kHz
Linearity
0.4%
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Current
21.6mA
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Mount
Through Hole, PCB
Number of Channels
1
Operating Supply Voltage
5.25V
Overall Depth
17.9mm
Packaging
Bulk
Reach SVHC Compliant
No
Response Time
30us
RoHS Compliant
Yes
Series
CTSR
Wire/Cable Diameter
20.3mm
Compliance
RoHS
Compliant
Datasheet
LEM CTSR0.6-P Datasheet
Download the complete datasheet for LEM CTSR0.6-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

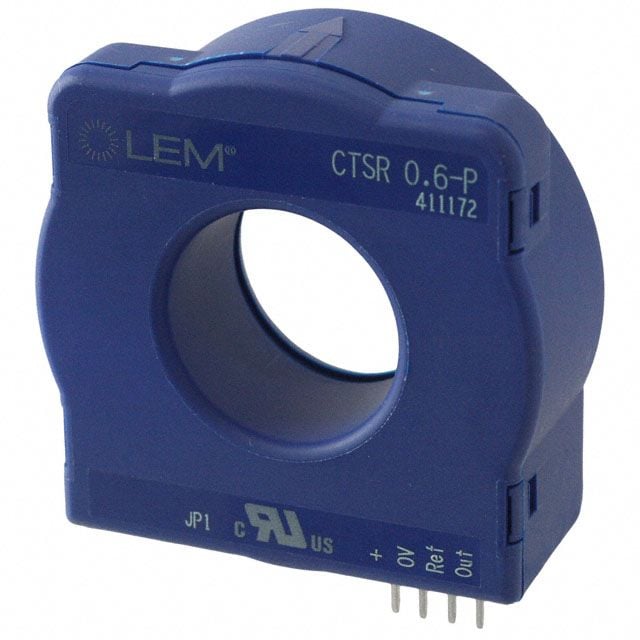

Product Images
