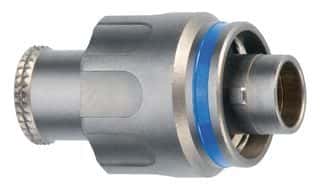

5-position, male circular connector with straight orientation and crimp termination. Features a durable aluminum body with nickel plating, and gold-plated bronze/brass contacts for reliable conductivity. Rated for 6.5A current and operates within a temperature range of -55°C to 200°C. This shielded, free-hanging cable mount connector offers IP68, waterproof, and dust-tight protection.
Current Rating6.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Lemo FGN.0M.305.XLCT technical specifications.
General
Body Material
Aluminium
Body Plating
Nickel
Contact Gender
Male
Contact Material
Bronze, Brass
Contact Plating
Gold
Current Rating
6.5A
Features
Shielded
Gender
Male
Max Operating Temperature
200°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
5
Number of Positions
5
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP68, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
0M
Termination
Crimp
Compliance
RoHS
Compliant
Datasheet
Lemo FGN.0M.305.XLCT Datasheet
Download the complete datasheet for Lemo FGN.0M.305.XLCT to view detailed technical specifications.
