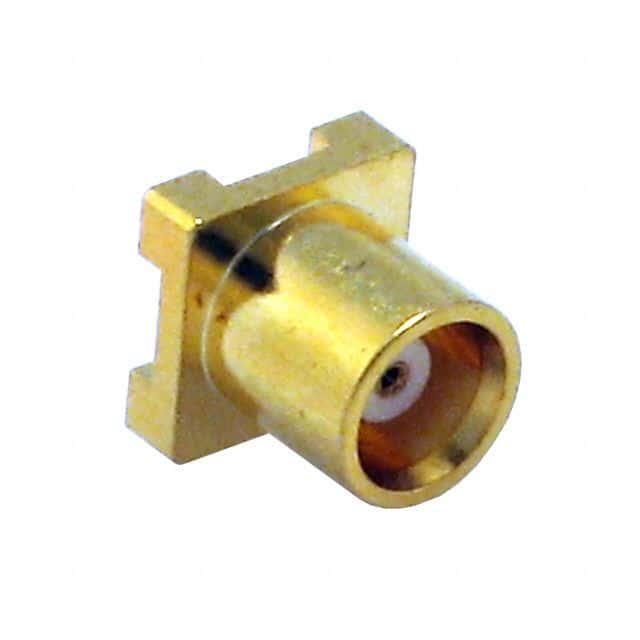

Surface mount MCX receptacle connector with 50 Ohm impedance, designed for vertical mounting. Features brass body with gold plating, copper contacts with gold plating, and a PTFE dielectric. Operates up to 6GHz with a maximum insertion loss of 0.1dB and 500 mating cycles. Suitable for temperatures from -65°C to 165°C, this lead-free and RoHS compliant component offers solder termination.
Frequency6GHz
PackageSMD/SMT
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Linx CONMCX001-SMD technical specifications.
General
Body Material
Brass
Body Plating
Gold
Package/Case
SMD/SMT
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Housing Color
Gold
Impedance
50R
Insertion Loss
0.1dB
Lead Free
Lead Free
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Surface Mount
Number of Ports
1
Orientation
Vertical
Package Quantity
100
Packaging
Bulk
Plating
Gold
Polarity
Standard
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Linx CONMCX001-SMD Datasheet
Download the complete datasheet for Linx CONMCX001-SMD to view detailed technical specifications.
