RF coaxial connector, MCX receptacle, straight, 50 Ohm impedance, designed for edge board mounting. Features brass body with gold plating, copper contacts with gold plating, and PTFE dielectric. Operates up to 6GHz with 0.1dB insertion loss, rated for 500 mating cycles and a temperature range of -65°C to 165°C. This lead-free, RoHS compliant component is supplied in bulk packaging.
Frequency6GHz
Package062
MountingEdge, Board
PolarityStandard
Quick Jump:
Technical Specifications
Linx CONMCX003.062 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Package/Case
062
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Housing Color
Gold
Impedance
50R
Insertion Loss
0.1dB
Lead Free
Lead Free
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Edge, Board
Number of Ports
1
Package Quantity
100
Packaging
Bulk
Plating
Gold
Polarity
Standard
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Linx CONMCX003.062 Datasheet
Download the complete datasheet for Linx CONMCX003.062 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

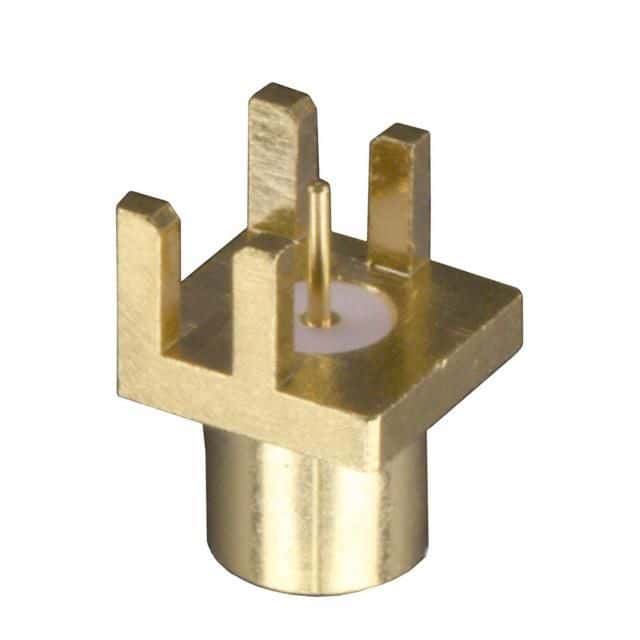

Product Images
