Edge mount, vertical orientation, single-port RF connector with 50 Ohm impedance. Features brass body with nickel plating and gold-plated brass center contact. Dielectric is PTFE. Rated for 500 mating cycles and operates up to 18GHz, with a temperature range of -65°C to 165°C. Lead-free and RoHS compliant, with solder termination.
Frequency18GHz
PackageSMA
MountingEdge, Board
PolarityReverse
Quick Jump:
Technical Specifications
Linx CONREVSMA003.062 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
PTFE
Housing Color
Silver
Impedance
50R
Lead Free
Lead Free
Length
6.3mm
Mating Cycles
500
Max Frequency
18GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Edge, Board
Number of Ports
1
Orientation
Vertical
Package Quantity
100
Packaging
Bulk
Plating
Nickel
Polarity
Reverse
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Linx CONREVSMA003.062 Datasheet
Download the complete datasheet for Linx CONREVSMA003.062 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

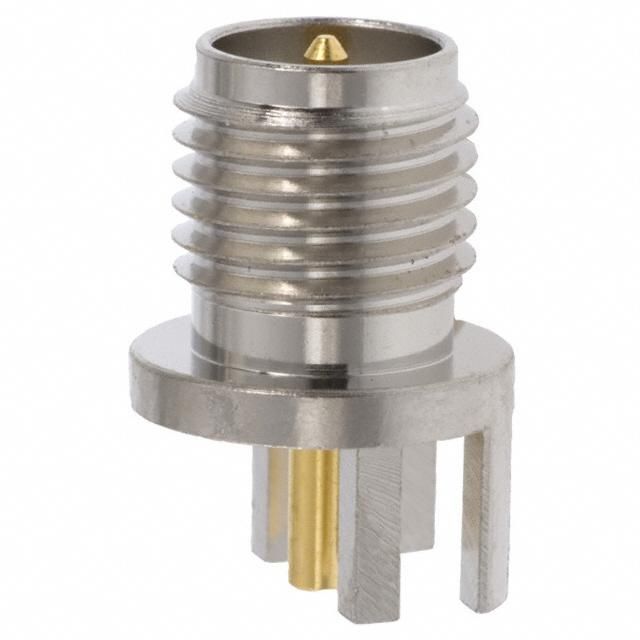

Product Images
