Right-angle SMA receptacle connector for PCB mounting, featuring a 50-ohm impedance and a maximum frequency of 12.4GHz. Constructed with a brass body plated in nickel, it utilizes copper contacts with gold plating and a PTFE dielectric. This connector supports 500 mating cycles and operates within a temperature range of -65°C to 165°C. It is lead-free, RoHS compliant, and terminates via solder.
Frequency12.4GHz
PackageSMA
MountingThrough Hole
Quick Jump:
Technical Specifications
Linx CONSMA002 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Housing Color
Silver
Impedance
50R
Lead Free
Lead Free
Mating Cycles
500
Max Frequency
12.4GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Ports
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Plating
Nickel
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Linx CONSMA002 Datasheet
Download the complete datasheet for Linx CONSMA002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

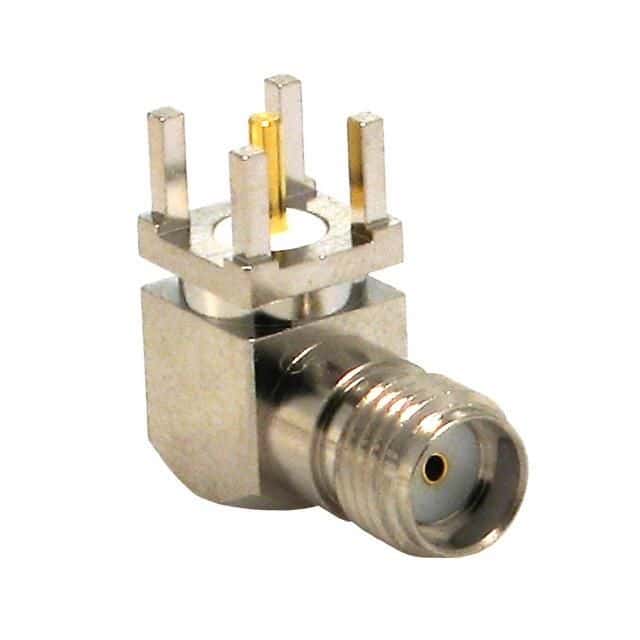

Product Images
