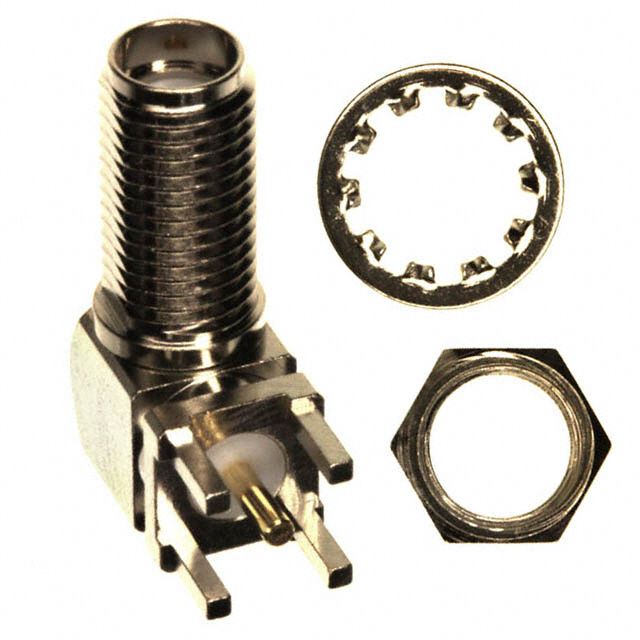

Right-angle SMA receptacle connector for PCB mounting, featuring a 50-ohm impedance and a maximum frequency of 18GHz. Constructed with a brass body plated in nickel, it utilizes copper contacts with gold plating and a PTFE dielectric. This through-hole mount component supports panel and bulkhead mounting with a front-side nut, offering 500 mating cycles and operating within a temperature range of -65°C to 165°C. Termination is via solder, and the product is lead-free and RoHS compliant.
Frequency18GHz
PackageSMA
MountingThrough Hole, Panel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications
Linx CONSMA002-L technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Housing Color
Silver
Impedance
50R
Lead Free
Lead Free
Mating Cycles
500
Max Frequency
18GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Through Hole, Panel, Bulkhead, Front Side Nut
Number of Ports
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Plating
Nickel
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Linx CONSMA002-L Datasheet
Download the complete datasheet for Linx CONSMA002-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
