Time lag electric fuse, 2A current rating, 250VAC/250VDC voltage rating. Features 1500A interrupting rating, 5x20mm ceramic body, and brass contacts with nickel plating. Operates within -55°C to 125°C, with a DC cold resistance of 56.6mR and power dissipation of 2.5W. RoHS compliant with UL, CSA, VDE, CE, CCC, PSE, SEMKO, and KC approvals.
PackageCeramic
Current2A
Storage20mm
Resistance41mR
Quick Jump:
Technical Specifications
Littelfuse 0215002.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, KC
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current
2A
Current Rating
2A
DC Cold Resistance
56.6mR
Diameter
5mm
Fuse Current
2A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
1000
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
41mR
RoHS Compliant
Yes
Series
215
Size
20mm
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0215002.MXP Datasheet
Download the complete datasheet for Littelfuse 0215002.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

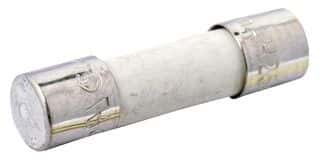

Product Images
