Surface mount resettable fuse with a 200mA current rating and 250VAC voltage rating. Features a glass body, brass contacts with nickel plating, and a 20mm length with a 5.2mm diameter. Operates across a temperature range of -55°C to 125°C with a maximum power dissipation of 1.6W. Approvals include UL, CSA, VDE, CE, CCC, SEMKO, and K-Mark.
Package217
Storage20mm
Resistance1.7R
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0217.200HXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, SEMKO, K-Mark
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Nickel
Current Rating
200mA
DC Cold Resistance
1.7R
Diameter
5.2mm
Fuse Current
200mA
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.6W
Reach SVHC Compliant
Unknown
Resistance
1.7R
Series
217
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0217.200HXP Datasheet
Download the complete datasheet for Littelfuse 0217.200HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

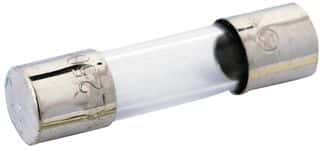

Product Images
