Fast-acting electric fuse with a 1A current rating and 250VAC/250VDC voltage rating. Features a 35A interrupting rating and a 5x20mm glass body with brass, nickel-plated clip terminations. Operates across a temperature range of -55°C to 125°C with a DC cold resistance of 96.4mR and power dissipation of 1.6W. This fuse is RoHS compliant and carries multiple international approvals including UL, CSA, and VDE.
Package217
Storage20mm
Resistance96mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0217001.MXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark, UR, BSI, KC
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Nickel
Current Rating
1A
DC Cold Resistance
96.4mR
Diameter
5mm
Fuse Current
1A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
96mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0217001.MXP Datasheet
Download the complete datasheet for Littelfuse 0217001.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

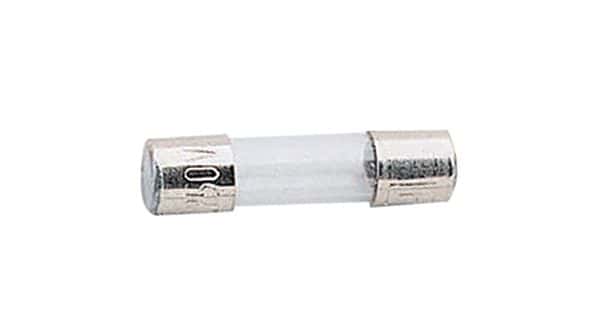

Product Images
