Fast-acting electric fuse with a 4A current rating and 250VAC voltage rating. Features a 40A interrupting rating, glass body, and brass nickel-plated clip terminations for holder or surface mount applications. Designed with a 5x20mm size and operating temperature range of -55°C to 125°C. RoHS compliant and includes multiple international approvals such as CSA, VDE, and CE.
Package217
Storage20mm
Resistance16mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0217004.HXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, KC
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Nickel
Current Rating
4A
DC Cold Resistance
16.5mR
Diameter
5.2mm
Fuse Current
4A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount
Package Quantity
100
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
16mR
RoHS Compliant
Yes
Series
217
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0217004.HXP Datasheet
Download the complete datasheet for Littelfuse 0217004.HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

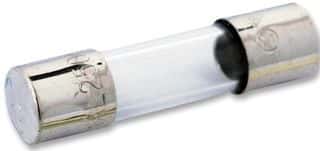

Product Images
