Fast-acting electric fuse, 1.25A current rating, designed for 250VAC and 250VDC applications. Features a 35A interrupting rating and a 5x20mm glass body. Compliant with RoHS standards and approved by CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, and KC. Operates within a temperature range of -55°C to 125°C, with a DC cold resistance of 70.1mR. Suitable for inline or holder mounting with brass clip terminations.
Package217
Resistance70mR
Voltage Rating250V
Current Rating1.25A
Quick Jump:
Technical Specifications
Littelfuse 02171.25MXP technical specifications.
General
Approvals
CSA, VDE, CE, UR, CCC, PSE, BSI, SEMKO, KC
Body Diameter
5mm
Body Material
Glass
Package/Case
217
Contact Material
Brass
Contact Plating
Glass
Current Rating
1.25A
DC Cold Resistance
70.1mR
Diameter
5mm
Fuse Current
1.25A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
70mR
RoHS Compliant
Yes
Series
217
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 02171.25MXP Datasheet
Download the complete datasheet for Littelfuse 02171.25MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

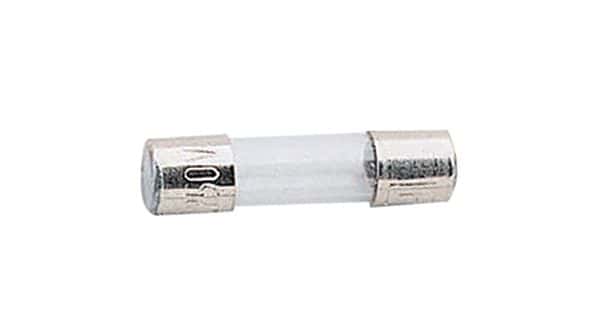

Product Images
