Time delay electric fuse, 2A current rating, 250VAC voltage rating, and 35A interrupting rating. Features a glass body, brass contacts with nickel plating, and a 5x20mm size. Suitable for holder mounting with through-hole termination. UL, CSA, VDE, CE, CCC, PSE, SEMKO, and K-Mark approvals. RoHS compliant with a maximum operating temperature of 125°C.
Storage20mm
Resistance29mR
Voltage Rating250V
Current Rating2A
Quick Jump:
Technical Specifications
Littelfuse 0218002.HXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
2A
DC Cold Resistance
29.3mR
Diameter
5.2mm
Fuse Current
2A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Holder, Through Hole, Clip
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
29mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0218002.HXP Datasheet
Download the complete datasheet for Littelfuse 0218002.HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

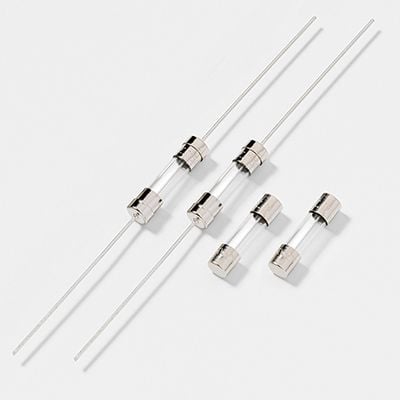

Product Images
