Time delay electric fuse, 3.15A current rating, 250VAC voltage rating, and 35A interrupting rating. Features a glass body, brass contacts, and a 5x20mm size. Operating temperature range from -55°C to 125°C with 1.6W maximum power dissipation. UL, CSA, VDE, CE, CCC, PSE, SEMKO, and K-Mark approvals. RoHS compliant and lead-free.
Storage20mm
Resistance17mR
Voltage Rating250V
Current Rating3.15A
Quick Jump:
Technical Specifications
Littelfuse 02183.15HXP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO, K-Mark
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Current Rating
3.15A
DC Cold Resistance
17.3mR
Diameter
5.2mm
Fuse Current
3.15A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Holder, Through Hole, Clip
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.6W
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
17mR
RoHS Compliant
Yes
Series
218
Size
20mm
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 02183.15HXP Datasheet
Download the complete datasheet for Littelfuse 02183.15HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

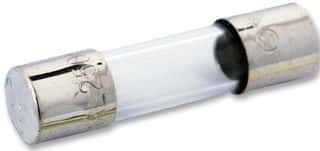

Product Images
