Storage15mm
Resistance265mR
Voltage Rating250V
Current Rating1.5A
Quick Jump:
Technical Specifications
Littelfuse 022501.5HXP technical specifications.
General
Approvals
UL, CSA, CE, PSE
Body Material
Glass
Current Rating
1.5A
DC Cold Resistance
71.2mR
Diameter
4.8mm
Fuse Current
1.5A
Lead Free
Lead Free
Length
14.48mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Surface Mount, Clip
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
265mR
RoHS Compliant
Yes
Series
225
Size
15mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 022501.5HXP Datasheet
Download the complete datasheet for Littelfuse 022501.5HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

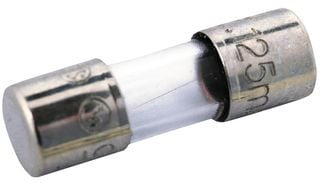

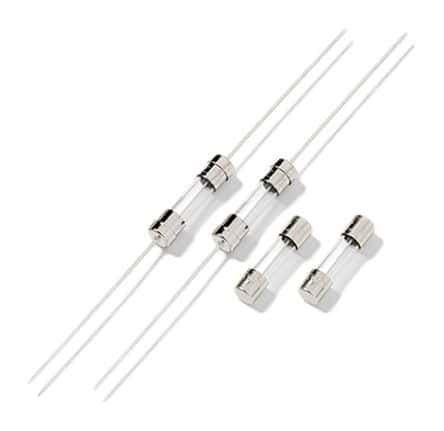

Product Images
