Axial leaded, through-hole mount resettable fuse with a 3A current rating and 250VAC/125VDC voltage rating. Features 38mR DC cold resistance, operating temperature range of -55°C to 125°C, and axial termination. This RoHS compliant component is supplied in tape and reel packaging.
PackageAxial
Storage4.5mm
Resistance38mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0230003.DRT1P technical specifications.
General
Approvals
UL, CSA, CE, PSE
Package/Case
Axial
Current Rating
3A
DC Cold Resistance
38.3mR
Diameter
4.7mm
Fuse Current
3A
Lead Free
Lead Free
Length
14.48mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Mounting Style
AXIAL
Package Quantity
1500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
38mR
RoHS Compliant
Yes
Series
230
Size
4.5mm
Termination
Axial
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0230003.DRT1P Datasheet
Download the complete datasheet for Littelfuse 0230003.DRT1P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

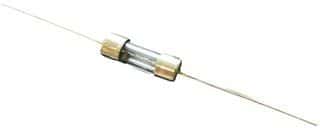

Product Images
