Storage20mm
Resistance120.5mR
Voltage Rating250V
Current Rating1.6A
Quick Jump:
Technical Specifications
Littelfuse 023901.6HXP technical specifications.
General
Approvals
UL, CSA, CE, PSE, KC
Body Material
Glass
Current Rating
1.6A
DC Cold Resistance
120.5mR
Diameter
5.2mm
Fuse Current
1.6A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Clip
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
120.5mR
RoHS Compliant
Yes
Series
239
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 023901.6HXP Datasheet
Download the complete datasheet for Littelfuse 023901.6HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

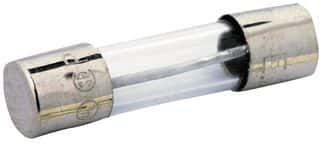

Product Images
