Very Fast Blow Electric Fuse, 3A current rating, 125VAC/125VDC voltage rating, with a 50A interrupting rating. Features a 2.41mm diameter, 7.11mm length, and 2.8mm height, with axial terminations for through-hole PCB mounting. Offers a DC cold resistance of 29.5mR and a time to trip of 4ms. Compliant with UL94 V-0 flammability, Halogen Free, and RoHS standards, with CSA, UR, TUV, CCC, QPL, and PSE approvals.
PackageAxial
Storage7.11mm
Resistance29mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0251003.MXL technical specifications.
General
Approvals
CSA, UR, TUV, CCC, QPL, PSE
Body Material
Epoxy
Package/Case
Axial
Current Rating
3A
DC Cold Resistance
29.5mR
Diameter
2.41mm
Flammability Rating
UL94 V-0
Fuse Current
3A
Height
2.8mm
Lead Free
Lead Free
Length
7.11mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
29mR
RoHS Compliant
Yes
Series
PICO® II 251
Size
7.11mm
Termination
Axial
Time to Trip
4ms
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0251003.MXL Datasheet
Download the complete datasheet for Littelfuse 0251003.MXL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

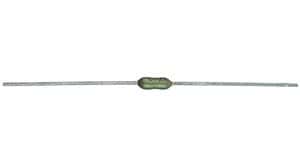

Product Images
