Subminiature fuse, very fast acting, with a 62mA current rating and 125V voltage rating. Features a radial package with a 6.35mm body diameter and 8.89mm body height, suitable for through-hole PCB mounting. Constructed from thermoplastic, this lead-free fuse operates within a temperature range of -55°C to 85°C and has a DC cold resistance of 2.32 Ohms. Approvals include UL, CSA, and QPL.
PackageRadial
Storage8.89mm
Resistance2.32R
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0273.062V technical specifications.
General
Approvals
UL, CSA, QPL
Body Diameter
6.35mm
Body Height
8.89mm
Body Material
Thermoplastic
Package/Case
Radial
Current Rating
62mA
DC Cold Resistance
2.32R
Diameter
6.35mm
Fuse Current
62mA
Height
0.35inch
Lead Free
Lead Free
Length
8.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
No
Resistance
2.32R
RoHS Compliant
Yes
Series
MICRO™ 273
Size
8.89mm
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Wire/Cable Diameter
0.64mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0273.062V Datasheet
Download the complete datasheet for Littelfuse 0273.062V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

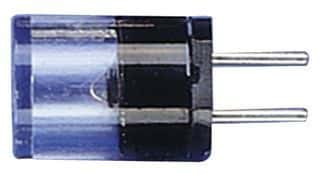

Product Images
