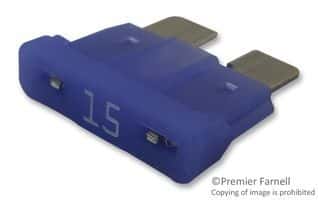

Automotive blade fuse, 15A current rating, 32V voltage rating. Features a polyamide 66 body, blue color, and blade termination. Operating temperature range from -40°C to 105°C. UL and CSA approved, RoHS compliant, with a DC cold resistance of 4.8mR. Dimensions are 19.1mm length, 12.3mm width, and 5.1mm depth.
Current15A
Storage12.19mm
Resistance31.1mR
Voltage Rating32V
Quick Jump:
Technical Specifications
Littelfuse 0287015.PXCN technical specifications.
General
Approvals
UL, CSA
Body Material
Nylon
Color
Blue
Current
15A
Current Rating
15A
DC Cold Resistance
4.8mR
Depth
5.1mm
Fuse Current
15A
Height
0.48inch
Lead Free
Lead Free
Length
19.1mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Holder, Socket
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
31.1mR
RoHS Compliant
Yes
Series
ATOF™ 287, Automotive
Size
12.19mm
Termination
Blade
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
5.1mm
Working Voltage
32V
Compliance
RoHS
Compliant
