Fast-acting surface mount fuse, 1A current rating, 32VDC working voltage, and 50A interrupting rating. Features a 0603 (1608 metric) ceramic body with nickel terminals, measuring 1.54mm L x 0.85mm W x 0.502mm H. Offers a DC cold resistance of 310mR and a power dissipation of 351mW. Operates within a temperature range of -55°C to 150°C and is halogen-free and RoHS compliant. Supplied in tape and reel packaging.
Package0603
Resistance310mR
Voltage Rating63V
Current Rating1A
Quick Jump:
Technical Specifications
Littelfuse 0438001.WR technical specifications.
General
Body Material
Ceramic
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
1A
DC Cold Resistance
310mR
Depth
0.85mm
Fuse Current
1A
Height
0.502mm
Lead Free
Lead Free
Length
1.54mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
351mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
310mR
RoHS Compliant
Yes
Series
438
Terminal Material
Nickel
Voltage Rating
63V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
0.85mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0438001.WR Datasheet
Download the complete datasheet for Littelfuse 0438001.WR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

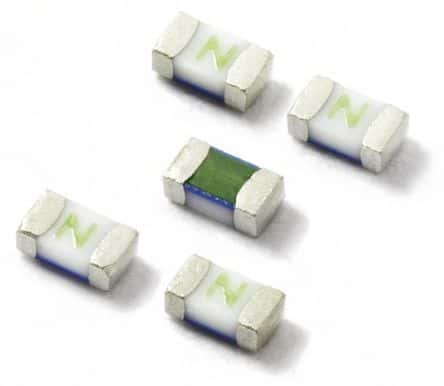

Product Images
