Very fast-acting electric fuse, 630mA current rating, 125VAC/125VDC voltage rating, with a 50A interrupting rating. Features a ceramic body, silver contact plating, and gold terminal material, designed for surface mount applications in a NANO package. Operating temperature range from -55°C to 125°C, with a DC cold resistance of 305mR. This component is HALOGEN FREE and ROHS COMPLIANT, supplied in tape and reel packaging.
PackageSMD/SMT
Storage2.69mm
Resistance305mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0451.630MRL technical specifications.
General
Approvals
UL, CSA
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Silver
Current Rating
630mA
DC Cold Resistance
305mR
Depth
2.69mm
Fuse Current
630mA
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
305mR
RoHS Compliant
Yes
Series
NANO²® 451
Size
2.69mm
Terminal Material
Gold
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0451.630MRL Datasheet
Download the complete datasheet for Littelfuse 0451.630MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

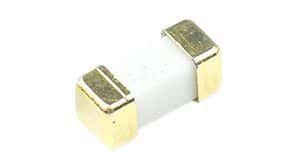

Product Images
