Very fast-acting electric fuse, 4A current rating, 125VAC/125VDC voltage rating, with a 50A interrupting rating. Features a compact SMD/SMT package measuring 6.1mm x 2.69mm x 2.69mm, designed for surface mounting. Offers a DC cold resistance of 16mR and operates across a temperature range of -55°C to 125°C. This fuse is halogen-free, RoHS compliant, and UL, CSA, and PSE approved.
PackageSMD/SMT
Storage2.69mm
Resistance16mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0451004.MRL technical specifications.
General
Approvals
UL, CSA, PSE
Body Material
Ceramic
Package/Case
SMD/SMT
Current Rating
4A
DC Cold Resistance
16mR
Depth
2.69mm
Diameter
2.69mm
Fuse Current
4A
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
16mR
RoHS Compliant
Yes
Series
451
Size
2.69mm
Terminal Material
Gold
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0451004.MRL Datasheet
Download the complete datasheet for Littelfuse 0451004.MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

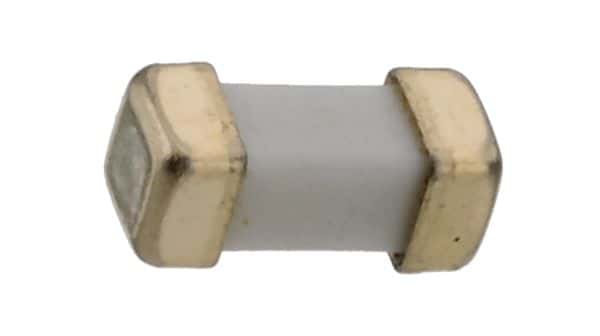

Product Images
