Surface mount time delay fuse, 7A current rating, 72V AC/DC voltage rating. Features a ceramic body, gold-plated terminals, and a 10.5mΩ DC cold resistance. Operates within a temperature range of -55°C to 125°C. Packaged in tape and reel for automated assembly, with UL and CSA approvals.
PackageSMD/SMT
Resistance10.5mR
Voltage Rating72V
Current Rating7A
Quick Jump:
Technical Specifications
Littelfuse 0452007.MRL technical specifications.
General
Approvals
UL, CSA
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Gold
Current Rating
7A
DC Cold Resistance
10.5mR
Depth
2.69mm
Fuse Current
7A
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
10.5mR
RoHS Compliant
Yes
Series
452
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
72V
Voltage Rating (AC)
72V
DC Rated Voltage
60V
Width
2.69mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0452007.MRL Datasheet
Download the complete datasheet for Littelfuse 0452007.MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

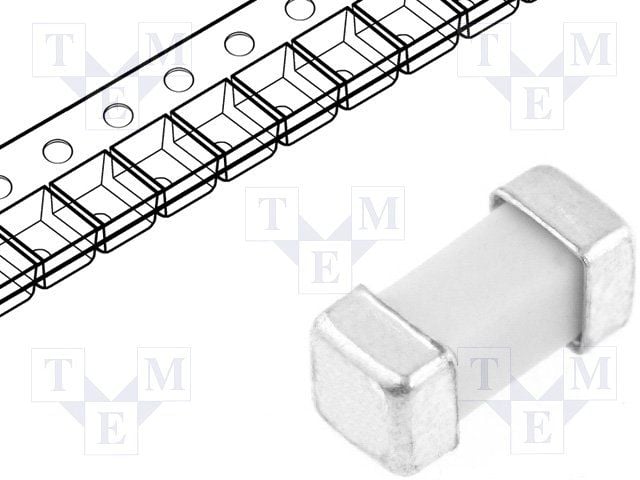

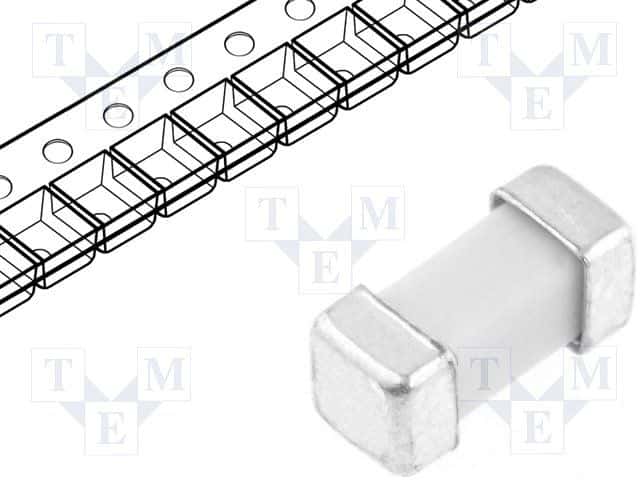

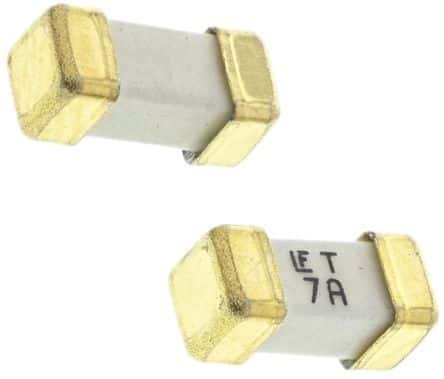

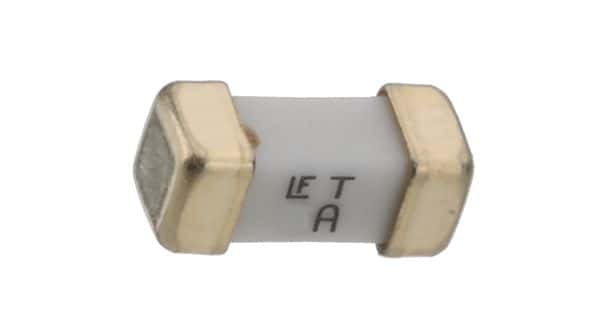

Product Images
