Surface mount ceramic fuse, 20A current rating, 125V AC voltage rating. Features a 2.3mΩ DC cold resistance and operates across a temperature range of -55°C to 125°C. Packaged in tape and reel, this lead-free component offers silver-plated brass contacts and is compliant with RoHS standards, with cULus and PSE approvals.
PackageSMD/SMT
Storage3.25mm
Resistance2.3mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0456020.ER technical specifications.
General
Approvals
cULus, PSE
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Material
Brass
Contact Plating
Silver
Current Rating
20A
DC Cold Resistance
2.3mR
Depth
3.12mm
Fuse Current
20A
Height
4.445mm
Lead Free
Lead Free
Length
10.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
2.3mR
RoHS Compliant
Yes
Series
456
Size
3.25mm
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
100V
Width
4.445mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0456020.ER Datasheet
Download the complete datasheet for Littelfuse 0456020.ER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

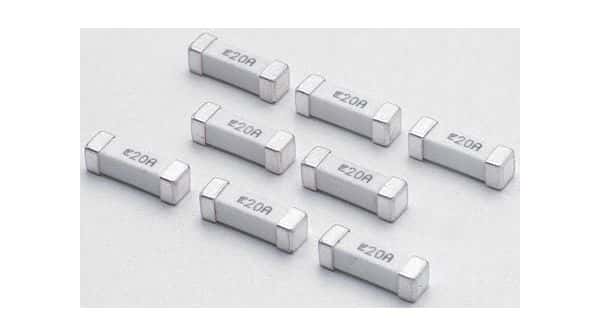

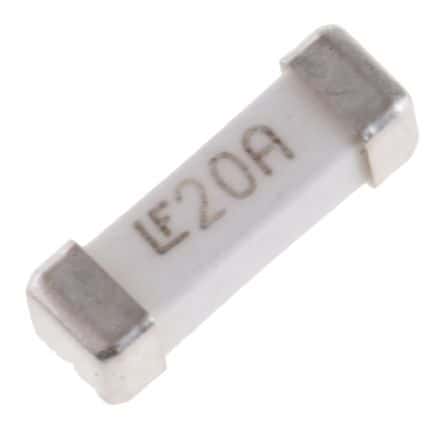

Product Images
