Very Fast Acting Chip Fuse, 500mA current rating and 63V voltage rating. Features a 1206 SMD solder pad termination with a 3.18mm length, 1.52mm width, and 0.58mm height. Operating temperature range from -55°C to 90°C. Packaged in tape and reel, this RoHS compliant component offers a DC cold resistance of 248mR.
Package1206
Resistance350mR
Voltage Rating63V
Current Rating500mA
Quick Jump:
Technical Specifications
Littelfuse 0466.500NR technical specifications.
General
Body Material
Thermoplastic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
500mA
DC Cold Resistance
248mR
Depth
1.52mm
Fuse Current
500mA
Height
0.58mm
Lead Free
Lead Free
Length
3.18mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
350mR
RoHS Compliant
Yes
Series
466
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
63V
Voltage Rating (AC)
63V
DC Rated Voltage
63V
Width
1.52mm
Working Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0466.500NR Datasheet
Download the complete datasheet for Littelfuse 0466.500NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

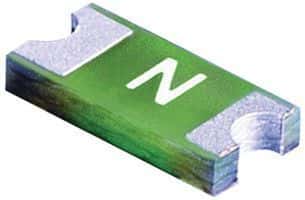

Product Images
