Very fast-acting electric fuse, 5A current rating, 32VAC/32VDC voltage rating, with a 35A interrupting rating. Features a 1206 surface mount case code (3216 metric) and is RoHS compliant. Operating temperature range from -55°C to 90°C, with a DC cold resistance of 11mR and a resistance of 37mR. UL and CSA approvals.
Package1206
Resistance37mR
Voltage Rating32V
Current Rating5A
Quick Jump:
Technical Specifications
Littelfuse 0466005.NR technical specifications.
General
Approvals
UL, CSA
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
5A
DC Cold Resistance
11mR
Depth
1.52mm
Fuse Current
5A
Height
0.58mm
Lead Free
Lead Free
Length
3.18mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
368.8mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
37mR
RoHS Compliant
Yes
Series
466
Terminal Material
Copper
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
1.52mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0466005.NR Datasheet
Download the complete datasheet for Littelfuse 0466005.NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

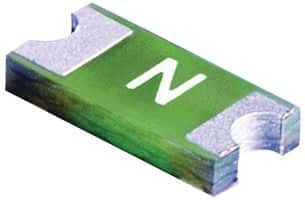

Product Images
