Surface mount chip fuse with a 3A current rating and 32V voltage rating. Features very fast-acting performance, a 0603 (1608 metric) case size, and a DC cold resistance of 17mR. Constructed with a thermoplastic body, this RoHS compliant fuse is supplied on tape and reel for automated assembly. Operating temperature range spans from -55°C to 90°C.
Package0603
Resistance18mR
Voltage Rating32V
Current Rating3A
Quick Jump:
Technical Specifications
Littelfuse 0467003.NR technical specifications.
General
Body Material
Thermoplastic
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
3A
DC Cold Resistance
17mR
Depth
0.81mm
Fuse Current
3A
Height
0.305mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
225.1mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
18mR
RoHS Compliant
Yes
Series
467
Termination
SMD/SMT
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
0.813mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0467003.NR Datasheet
Download the complete datasheet for Littelfuse 0467003.NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

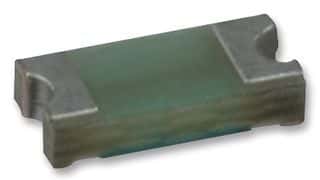

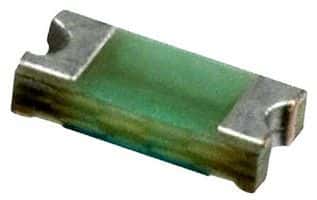

Product Images
