Surface mount chip fuse, very fast acting, with a 4A current rating and 32V voltage rating. Features a 0603 (1608 metric) case code, 1.18mR DC cold resistance, and 13mR resistance. Operates from -55°C to 90°C, with a power dissipation of 294.9mW. Packaged in tape and reel, this lead-free and RoHS compliant component is ideal for general circuit protection.
Package0603
Resistance13mR
Voltage Rating32V
Current Rating4A
Quick Jump:
Technical Specifications
Littelfuse 0467004.NR technical specifications.
General
Body Material
Thermoplastic
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
4A
DC Cold Resistance
1.18mR
Depth
0.81mm
Fuse Current
4A
Height
0.305mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
294.9mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
13mR
RoHS Compliant
Yes
Series
467
Termination
SMD/SMT
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
0.813mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0467004.NR Datasheet
Download the complete datasheet for Littelfuse 0467004.NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

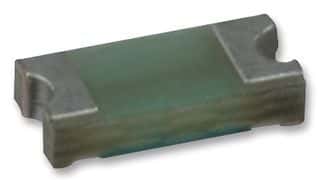

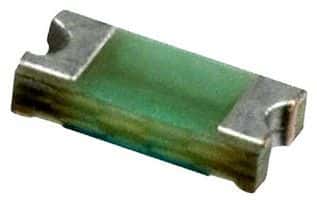

Product Images
