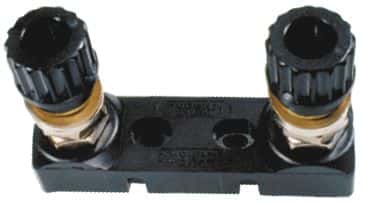

Chassis mountable, single-pole fuse holder designed for circuit protection. Features a ceramic body and copper alloy contacts, rated for 425A and 80V. Accommodates a 62mm pitch strip fuse. Illuminated design with screw termination.
Package0001
Voltage80V
Voltage Rating80V
Current Rating425A
Quick Jump:
Technical Specifications
Littelfuse 177.5701.0001 technical specifications.
General
Body Material
Ceramic
Package/Case
0001
Color
Black
Contact Material
Copper Alloy
Current Rating
425A
Depth
24mm
Fuse Current
425A
Fuse Size
Strip, 62mm Pitch
Illumination Type
Illuminated
Lead Free
Lead Free
Length
85mm
Material
Copper Alloy
Mount
Chassis Mount
Number of Circuits
1
Number of Poles
1
Package Quantity
10
Packaging
Case
Reach SVHC Compliant
Unknown
Termination
Screw
Voltage
80V
Voltage Rating
80V
Voltage Rating (AC)
80V
DC Rated Voltage
80V
Width
85mm
Compliance
RoHS
Compliant
