Fast-acting midget fuse, 0.5A, 600V AC/DC, 10 x 38mm cartridge fuse. Features a MELF package with a 8.16 Ohm DC cold resistance and 406µm diameter. Operates across a temperature range of -55°C to 125°C. RoHS compliant with clip termination.
PackageMELF
Current500mA
Storage38.1mm
Resistance8.16R
Quick Jump:
Technical Specifications
Littelfuse KLKD.500T technical specifications.
General
Package/Case
MELF
Current
500mA
Current Rating
500mA
DC Cold Resistance
8.16R
Diameter
406um
Fuse Current
500mA
Fuse Size
10 x 38mm
Lead Free
Lead Free
Length
1.5inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600V
Mount
Holder
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
Resistance
8.16R
RoHS Compliant
Yes
Series
KLKD
Size
38.1mm
Termination
Clip
Type
Electrical
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Working Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Littelfuse KLKD.500T Datasheet
Download the complete datasheet for Littelfuse KLKD.500T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

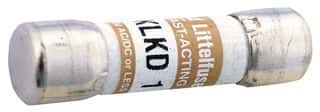

Product Images
