Bidirectional Transient Voltage Suppressor (TVS) diode for circuit protection. Features 600W peak pulse power dissipation and 28.8A peak pulse current handling. Offers a 12.8V reverse standoff voltage and a clamping voltage of 21.2V. Designed with a DO-15 plastic package for through-hole mounting. Operating temperature range from -55°C to 175°C.
PackageDO-15
MountingThrough Hole
PolarityBidirectional
Power600W
Quick Jump:
Technical Specifications
Littelfuse P6KE15CA technical specifications.
General
Package/Case
DO-15
Clamping Voltage
21.2V
Clamping Voltage-Max
21.2V
Diameter
3.6mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
Yes
Lead Free
Lead Free
Leakage Current
1uA
Length
0.299inch
Max Breakdown Voltage
15.8V
Min Breakdown Voltage
14.3V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
5W
Max Reverse Leakage Current
1uA
Max Surge Current
28.8A
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
12.8V
Package Quantity
4000
Packaging
Tape and Reel
Peak Pulse Current
28.8A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Dissipation
600W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
14.3V
Reverse Standoff Voltage
12.8V
RoHS Compliant
Yes
Series
P6KE
Termination
Axial
DC Rated Voltage
15V
Compliance
RoHS
Compliant
Datasheet
Littelfuse P6KE15CA Datasheet
Download the complete datasheet for Littelfuse P6KE15CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

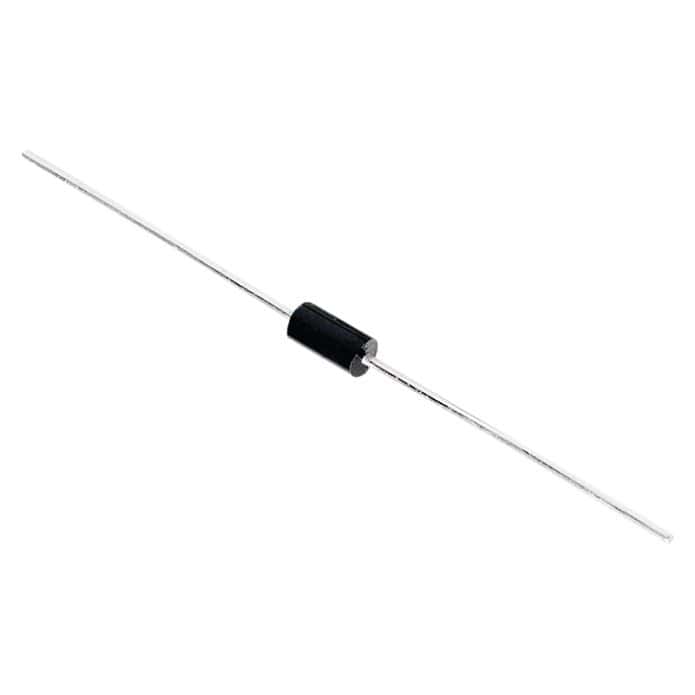

Product Images
