Bidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 6V DC rated voltage and 6V reverse standoff voltage, with a minimum breakdown voltage of 6.67V. Offers a peak pulse power of 400W and a maximum surge current of 38.8A, with a clamping voltage of 10.3V. Operates across a temperature range of -65°C to 150°C and is housed in a DO-214AC package.
PackageDO-214AC
MountingSurface Mount
PolarityBidirectional
Power400W
Quick Jump:
Technical Specifications
Littelfuse SMAJ6.0CA technical specifications.
General
Package/Case
DO-214AC
Clamping Voltage
10.3V
Clamping Voltage-Max
10.3V
Diode Type
ZENER
Direction
Bidirectional
Height
2.29mm
Lead Free
Lead Free
Leakage Current
1.6mA
Length
5.28mm
Max Breakdown Voltage
73.7V
Min Breakdown Voltage
6.67V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
3.3W
Max Reverse Leakage Current
800uA
Max Surge Current
38.8A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
6V
Package Quantity
5000
Packaging
Tape and Reel
Peak Pulse Current
38.8A
Peak Pulse Power
400W
Polarity
Bidirectional
Power Dissipation
400W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.67V
Reverse Standoff Voltage
6V
Reverse Voltage
6V
RoHS Compliant
Yes
Series
SMAJ
Termination
SMD/SMT
DC Rated Voltage
6V
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse SMAJ6.0CA Datasheet
Download the complete datasheet for Littelfuse SMAJ6.0CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

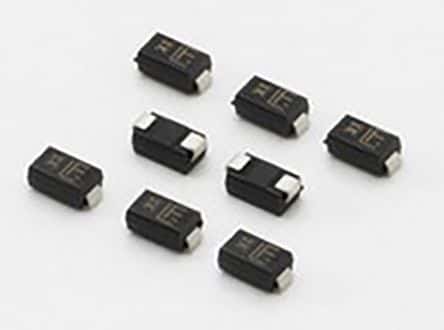

Product Images
