5-position, 5-pole circular connector with straight orientation and solder termination. Features a metal body and panel/chassis mount for secure installation. Rated for 5A and 250V, with a temperature range of -40°C to 85°C. Contacts are brass, copper, gold, and CuZn with silver and gold plating. Approvals include VDE and IEC, with IP40 rating and RoHS compliance.
PackageMetal
Voltage Rating250V
Current Rating5A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
Lumberg KFV50/6 technical specifications.
General
| Approvals | VDE, IEC |
| Body Material | Metal |
| Package/Case | Metal |
| Color | Silver |
| Contact Material | Brass, Copper, Gold, CuZn |
| Contact Plating | Silver, Gold |
| Contact Type | Socket |
| Current Rating | 5A |
| Gender | Female |
| Length | 17.5mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Chassis |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Orientation | Straight |
| Packaging | Box |
| Plating | Copper |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KFV |
| Strain Relief | No (Without) |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Lumberg KFV50/6 Datasheet
Download the complete datasheet for Lumberg KFV50/6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

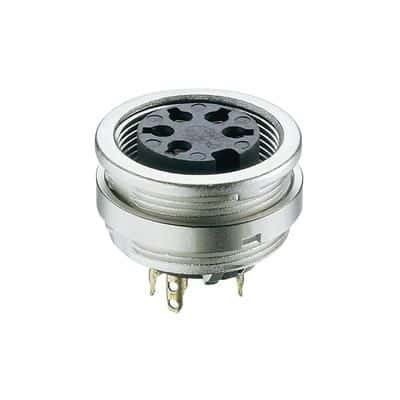

Product Images
