6-contact, female DIN audio/video connector for panel mounting. Features a plastic body with silver plating and silver/gold plated brass contacts. Rated for 250V and 5A, with an operating temperature range of -40°C to 85°C. Solder termination and IP40 rating ensure reliable connection. RoHS compliant.
Voltage Rating250V
Current Rating5A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
Lumberg KFV60 technical specifications.
General
Approvals
VDE, IEC
Body Material
Plastic
Color
Silver
Contact Material
Brass, Gold, CuZn
Contact Plating
Silver, Gold
Contact Type
Socket
Current Rating
5A
Gender
Female
Length
17.5mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel, Chassis
Number of Contacts
6
Orientation
Straight
Packaging
Box
Plating
Copper
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KFV
Strain Relief
No (Without)
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Lumberg KFV60 Datasheet
Download the complete datasheet for Lumberg KFV60 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

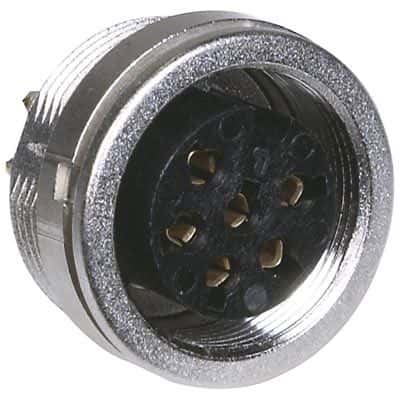

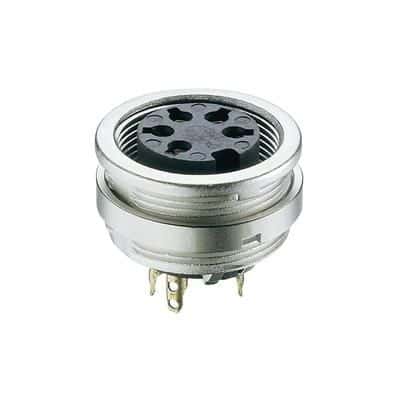

Product Images
