Lumberg
KLBM3
LUMBERG KLBM 3 Phone Audio Connector, Socket, 6.35 mm, 2 Contacts, Chassis Mount, Metal Body
PackageMetal
Quick Jump:
Technical Specifications
Lumberg KLBM3 technical specifications.
General
Body Material
PC, Polycarbonate, Metal
Package/Case
Metal
Color
Black
Contact Material
NICKEL PLATED
Contact Plating
Silver
Gender
Female
Mating Cycles
5000
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Number of Contacts
2
Pin Diameter
6.35mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage Rating (AC)
34V
Compliance
RoHS
Compliant
Datasheet
Lumberg KLBM3 Datasheet
Download the complete datasheet for Lumberg KLBM3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

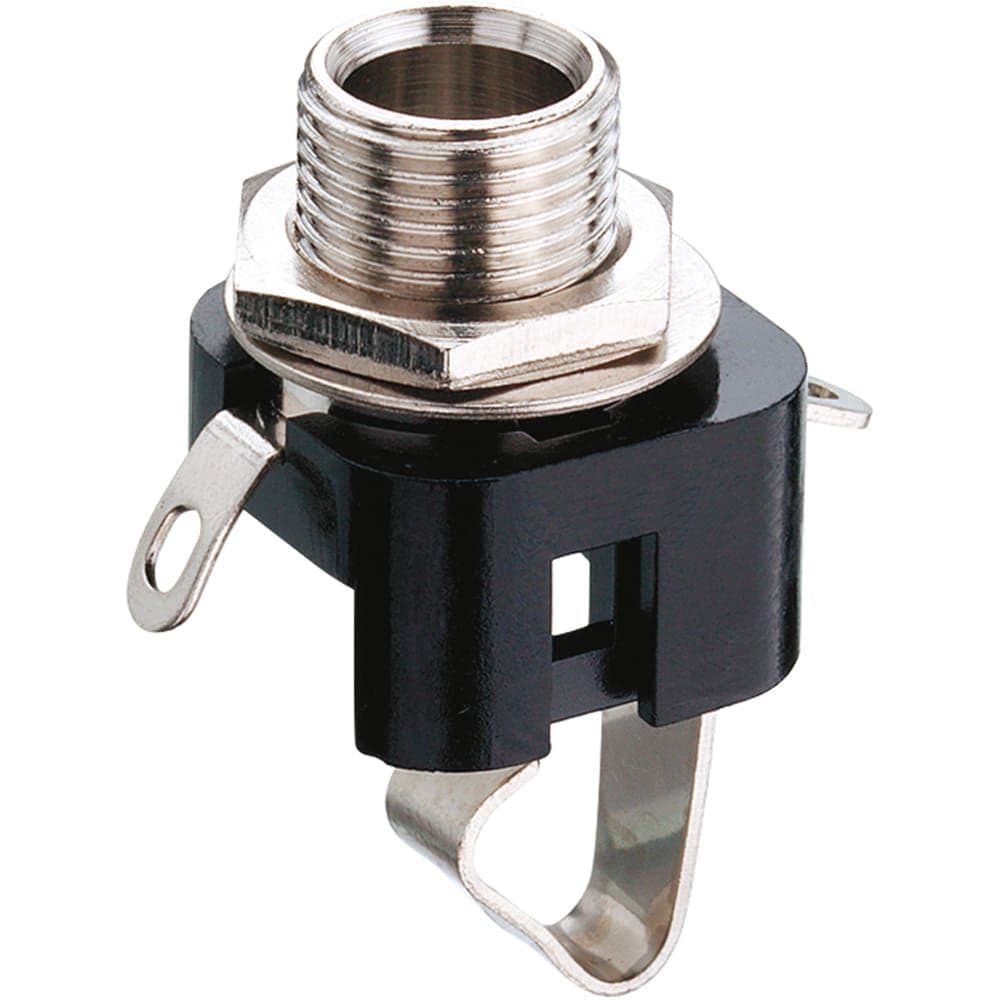

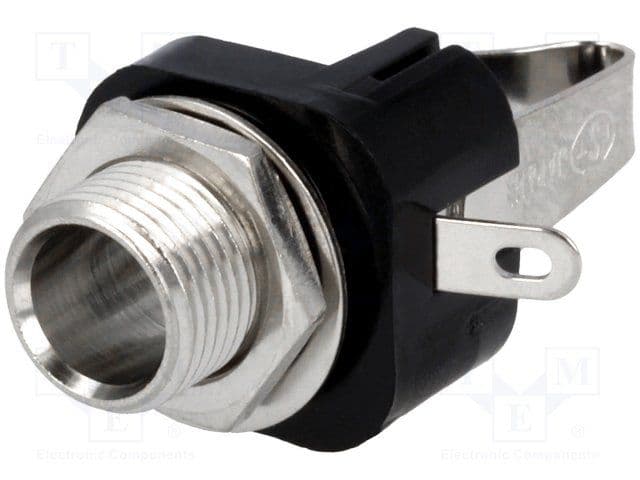

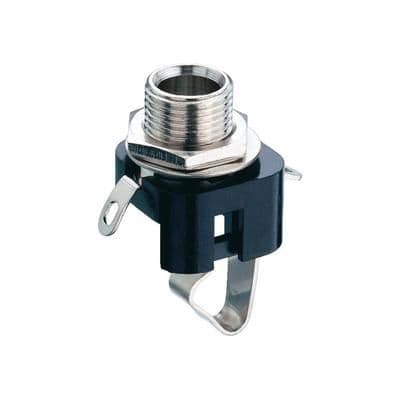

Product Images
