5-contact, 5-pole DIN audio/video connector, cable mount, female socket. Features silver and gold plated brass/copper contacts, metal body with nickel plating, and a straight orientation. Rated for 250V and 5A, with an operating temperature range of -40°C to 85°C. Approvals include VDE and IEC, with IP40 rating and RoHS compliance.
PackageMetal
Voltage Rating250V
Current Rating5A
MountingCable, Free Hanging
Quick Jump:
Technical Specifications
Lumberg KV50/6 technical specifications.
General
Approvals
VDE, IEC
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Material
Brass, Copper, CuZn, Gold
Contact Plating
Silver, Gold
Contact Type
Socket
Current Rating
5A
Gender
Female
Length
66.3mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Cable, Free Hanging
Number of Contacts
5
Number of Poles
5
Orientation
Straight
Packaging
Box
Plating
Nickel
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KV
Termination
Solder
Voltage Rating
250V
Wire/Cable Diameter
-6mm
Compliance
RoHS
Compliant
Datasheet
Lumberg KV50/6 Datasheet
Download the complete datasheet for Lumberg KV50/6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

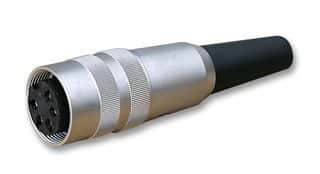

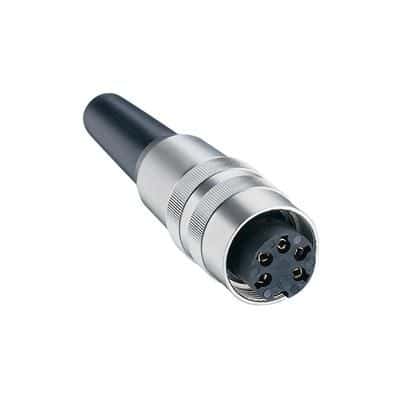

Product Images
