8-contact, straight, female DIN audio/video connector for cable mounting. Features silver-plated brass, copper, and CuZn contacts with solder termination, rated for 5A and 60V. Metal body construction ensures durability with an IP40 rating. Operating temperature range is -40°C to 85°C.
PackageMetal
Voltage Rating60V
Current Rating5A
MountingCable, Free Hanging
Quick Jump:
Technical Specifications
Lumberg KV81 technical specifications.
General
Approvals
VDE, IEC
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Material
Brass, Copper, CuZn
Contact Plating
Silver, Gold
Contact Type
Socket
Current Rating
5A
Gender
Female
Length
66.3mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Cable, Free Hanging
Number of Contacts
8
Number of Poles
8
Orientation
Straight
Packaging
Box
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KV
Termination
Solder
Voltage Rating
60V
Voltage Rating (AC)
60V
Wire/Cable Diameter
-6mm
Compliance
RoHS
Compliant
Datasheet
Lumberg KV81 Datasheet
Download the complete datasheet for Lumberg KV81 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

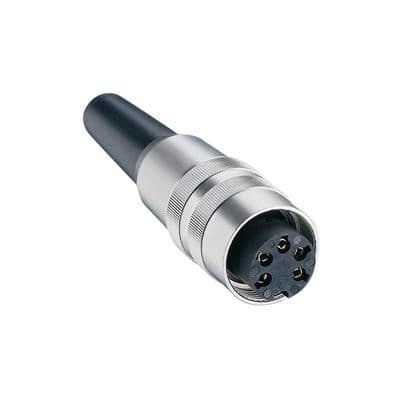

Product Images
