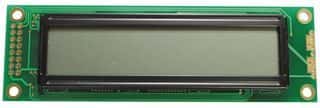

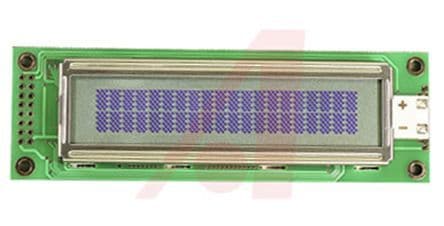

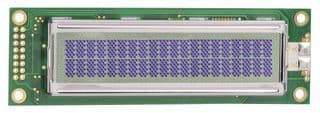

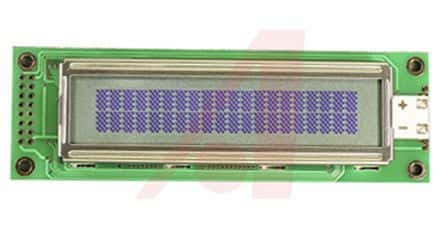

20 character x 2 line character LCD module featuring STN transflective fluid and a green background. LED backlight provides illumination. Operates at 5V with a current rating of 210mA. Interface is parallel, with a character width of 3.2mm. Module dimensions include a viewing area of 85mm width by 18.6mm height, and overall dimensions of 116mm width and 37mm height. Operating temperature range is 0°C to 50°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex LCM-S02002DSF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Background Color | Green |
| Backlight Type | LED |
| Package/Case | Module |
| Character Width | 3.2mm |
| Current Rating | 210mA |
| Fluid Type | STN |
| Height | 37mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Number of Characters | 40 |
| Number Of Characters Per Row | 20 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Area (height) | 18.6mm |
| Viewing Area (width) | 85mm |
| Voltage Rating | 4.6V |
| Width | 116mm |
| RoHS | Compliant |
Download the complete datasheet for Lumex LCM-S02002DSF to view detailed technical specifications.
