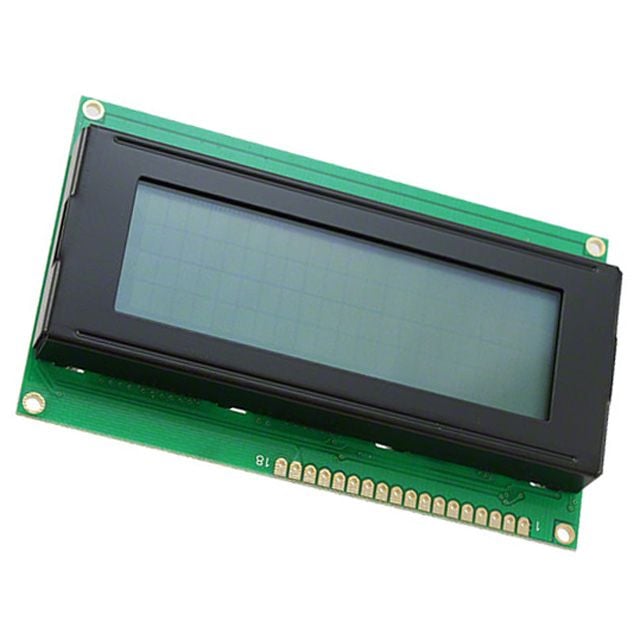

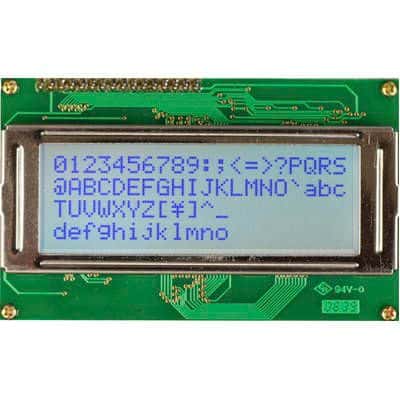

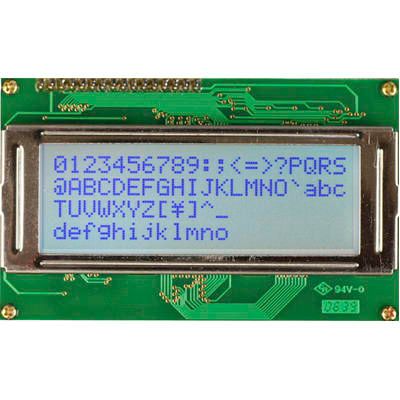

Grey STN LCD module featuring an LED backlight. This 20 character x 4 line display offers a 93mm x 25mm viewing area with 2.95mm character width. Operates at 5V with a 40mA current rating and a parallel interface. Designed for screw mounting, it functions across a -40°C to 85°C temperature range and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex LCR-U02004DSF-WH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Background Color | Grey |
| Backlight Type | LED |
| Package/Case | Module |
| Character Width | 2.95mm |
| Color | Grey |
| Current Rating | 40mA |
| Fluid Type | STN |
| Height | 60mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Screw |
| Number of Characters | 80 |
| Number Of Characters Per Row | 20 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Area (height) | 25mm |
| Viewing Area (width) | 93mm |
| Voltage Rating | 3.3V |
| Width | 98mm |
| RoHS | Compliant |
