PackageDIP
MountingThrough Hole, PCB
Power105mW
Quick Jump:
Technical Specifications
Lumex LDS-A302RI technical specifications.
General
Package/Case
DIP
Color
Green
Display Type
Segment
Forward Current
10mA
Height
19.1mm
Illumination Color
Green
Lead Free
Lead Free
Length
19.1mm
Luminous Intensity
2.5mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
105mW
Mount
Through Hole, PCB
Number of Characters
1
Number of Segments
7
Operating Supply Voltage
2.2V
Package Quantity
26
Packaging
Bulk
Power Consumption
105mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Wavelength
565nm
Width
10.18mm
Compliance
RoHS
Compliant
Datasheet
Lumex LDS-A302RI Datasheet
Download the complete datasheet for Lumex LDS-A302RI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

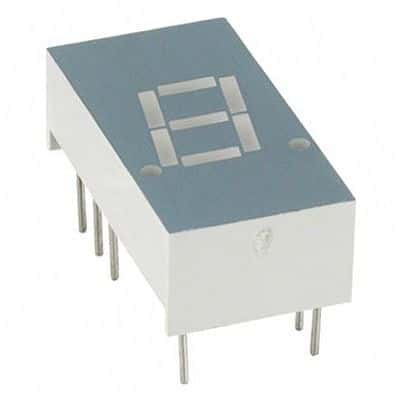

Product Images
