Optical pipe for optoelectronic applications. Features a 20.6mm body length and 3mm diameter with a clear, flat round lens. Constructed from durable polycarbonate, this press-fit mount component is lead-free and RoHS compliant. Supplied in bulk packaging with 1500 units per package.
MountingPress-Fit, Board, PCB
Quick Jump:
Technical Specifications
Lumex LPF-C011302S technical specifications.
General
Body Length
20.6mm
Color
Clear
Diameter
3mm
Height
0.244inch
Housing Color
Clear
Lead Free
Lead Free
Length
20.6mm
Lens Size
3mm
Lens Style
Round, Flat
Material
PC, Polycarbonate
Mount
Press-Fit, Board, PCB
Number of Ways
1
Package Quantity
1500
Packaging
Bulk
RoHS Compliant
Yes
Series
TransBrite™
Width
0.217inch
Compliance
RoHS
Compliant
Datasheet
Lumex LPF-C011302S Datasheet
Download the complete datasheet for Lumex LPF-C011302S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

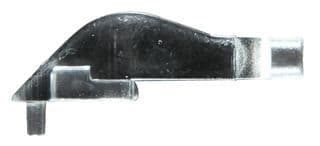

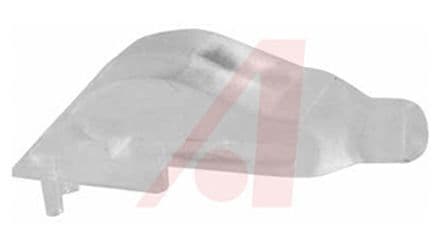

Product Images
